5000W Solar Off-grid AIO Inverter, 48Vdc to 120Vac, 5500W@500V PV Input, UL1741

Short Description:

This 5000W 48V off-grid AIO solar inverter is built for flexible solar backup and home energy systems. It supports up to 6 units in parallel, expanding the system to a maximum of 30kW. One inverter outputs 120V, while two or more units can work in parallel to provide 120V, 208V, or 240V output for higher-power needs. The inverter can also operate without batteries, using PV power directly to keep loads running during the day. With multiple output and charging modes, including solar priority, utility priority, battery priority, and hybrid charging, users can manage energy use more efficiently based on local grid conditions. A built-in LCD display allows real-time system monitoring, while intelligent protections such as PV overvoltage, reverse current, input limiting, and cooling fans help ensure safe and reliable operation.

WhatsApp Messenger Send email to us

Product Detail

Product Tags

Description:

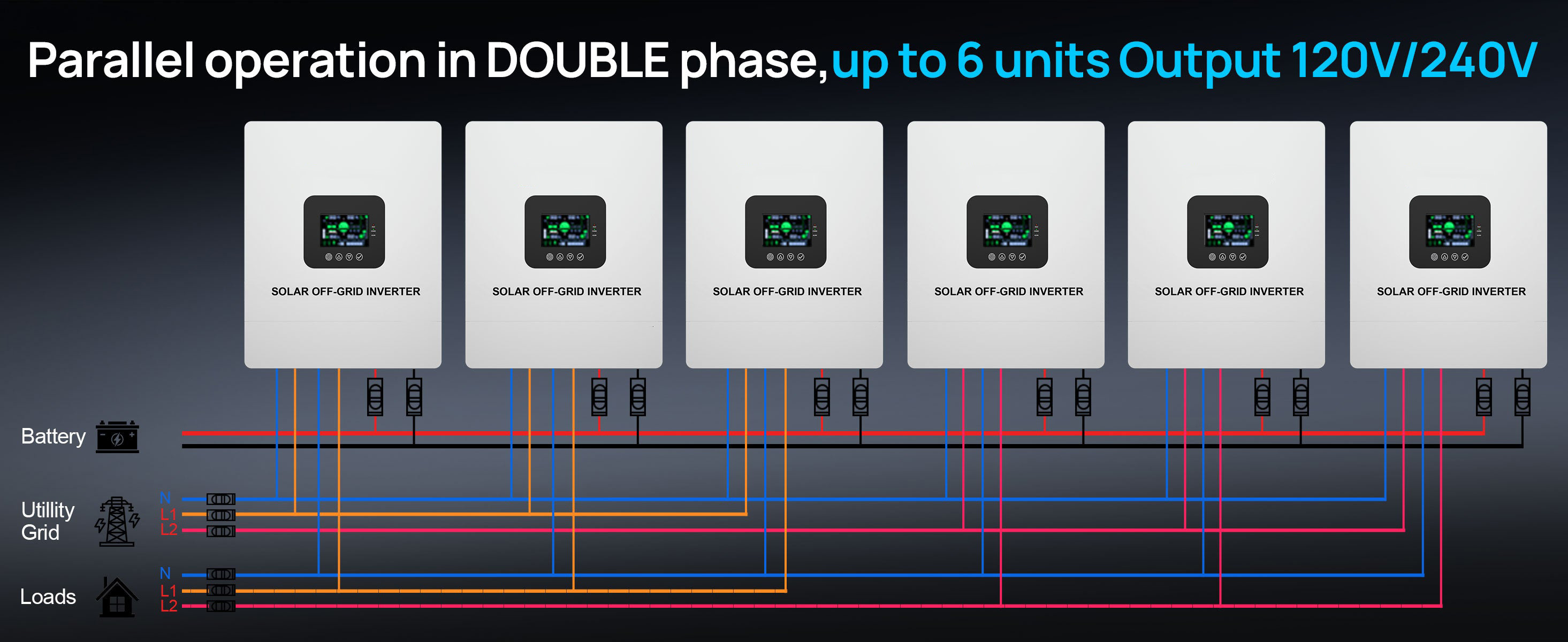

[Parallel Supportable] Parallel support up to 6 units-30kw Max. It can be single phase or separate phase parallel.The output voltage of one inverter is 120v, and more than two inverters can output 120v/208v/240v in parallel. (Two units MINIMUM have to be in parallel to achieve 220V power.)
[Battery-Free Running] It can work without battery power input. Keep the load running continuously in the battery-free state and use PV DC current to power the inverter.

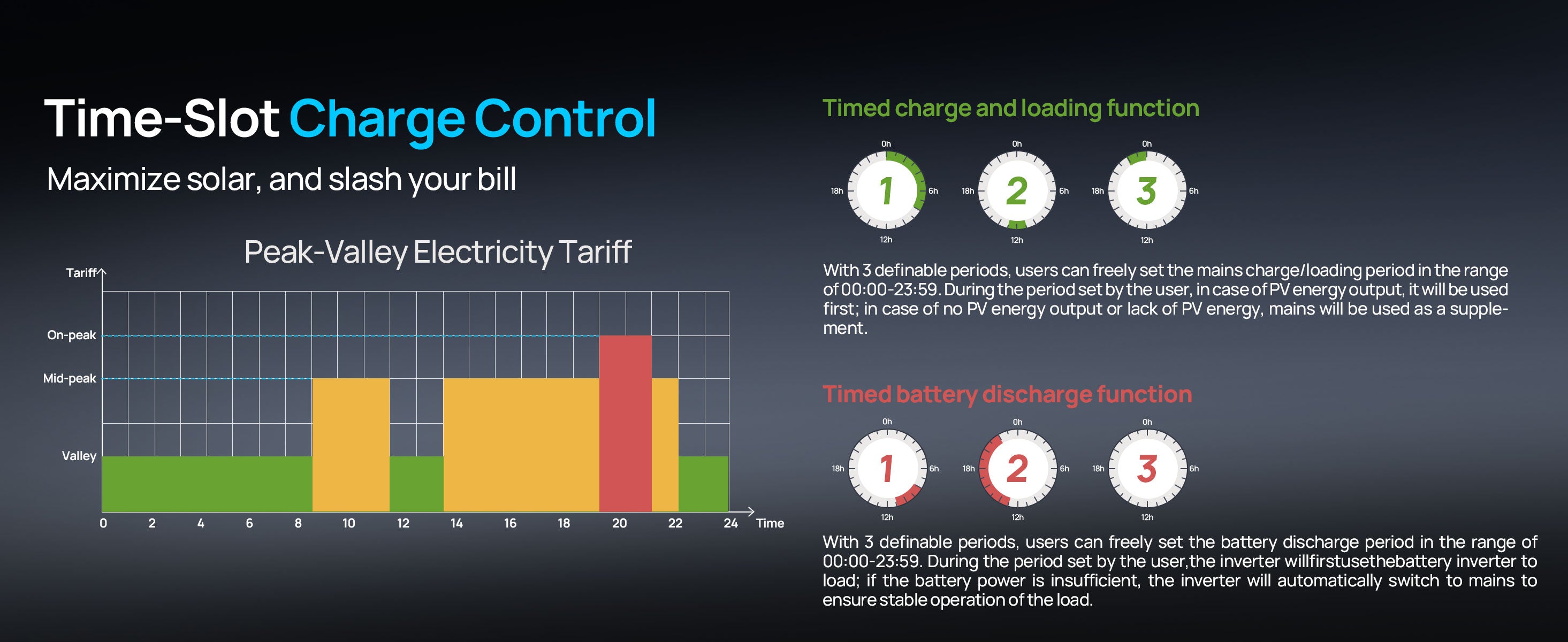

[Segmented Charing/Discharging] 3 output modes: mains priority and, battery priority, PV priority; uninterrupted power supply. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging. Set a flexible time period for mains charging/discharging according to the local mains condition, and help you save the mains.
[Technical Specifications] Max.PV input power: 5500W, PV input voltage range: 120-500V DC, Max.MPPT Charging Current: 80A, Rated Output Power: 5000W, Max.Peak Power: 10000W, Rated OutputVoltage: 120/240Vac.（split phase/single phase)

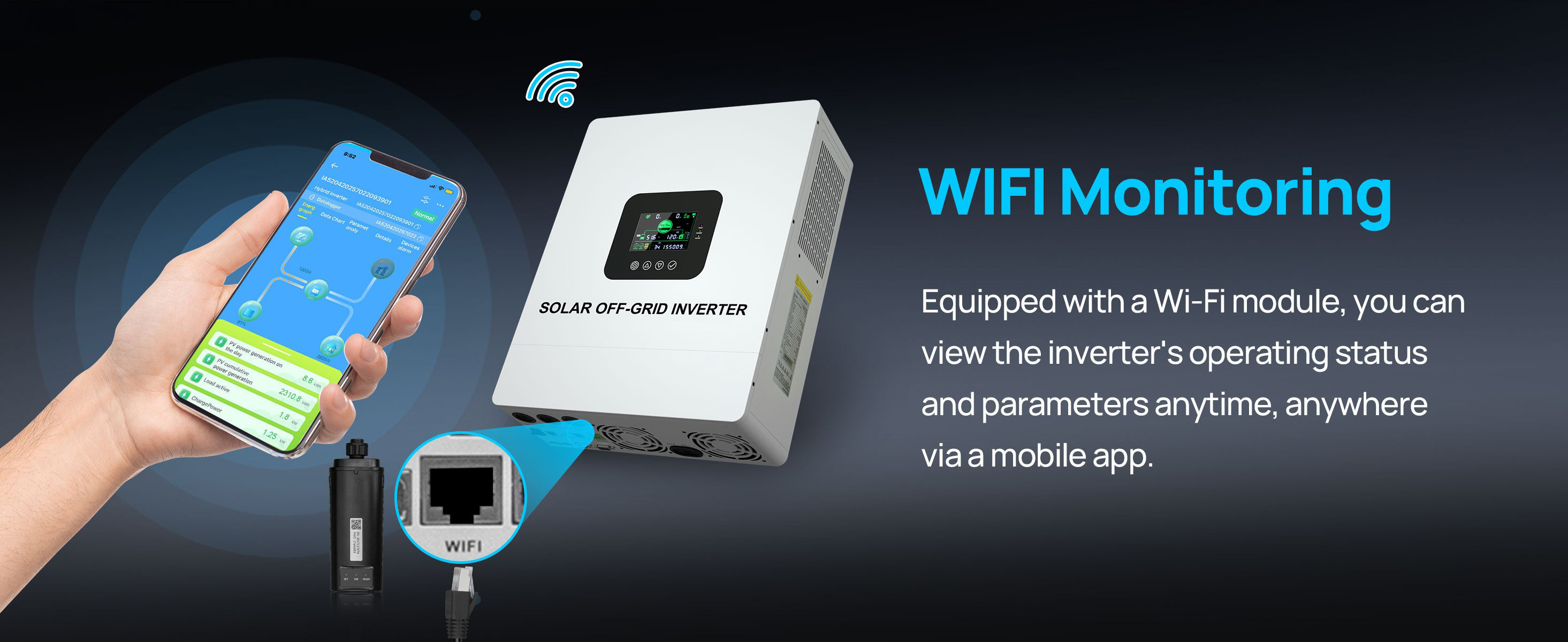

[Easy & Safe Use] LCD display to monitor all data anytime. Multiple intelligent protections, such as PV input current/power limiting protection, PV input over-voltage, PV night reverse current protection, multiple cooling fans to prevent over-heat issue, etc.

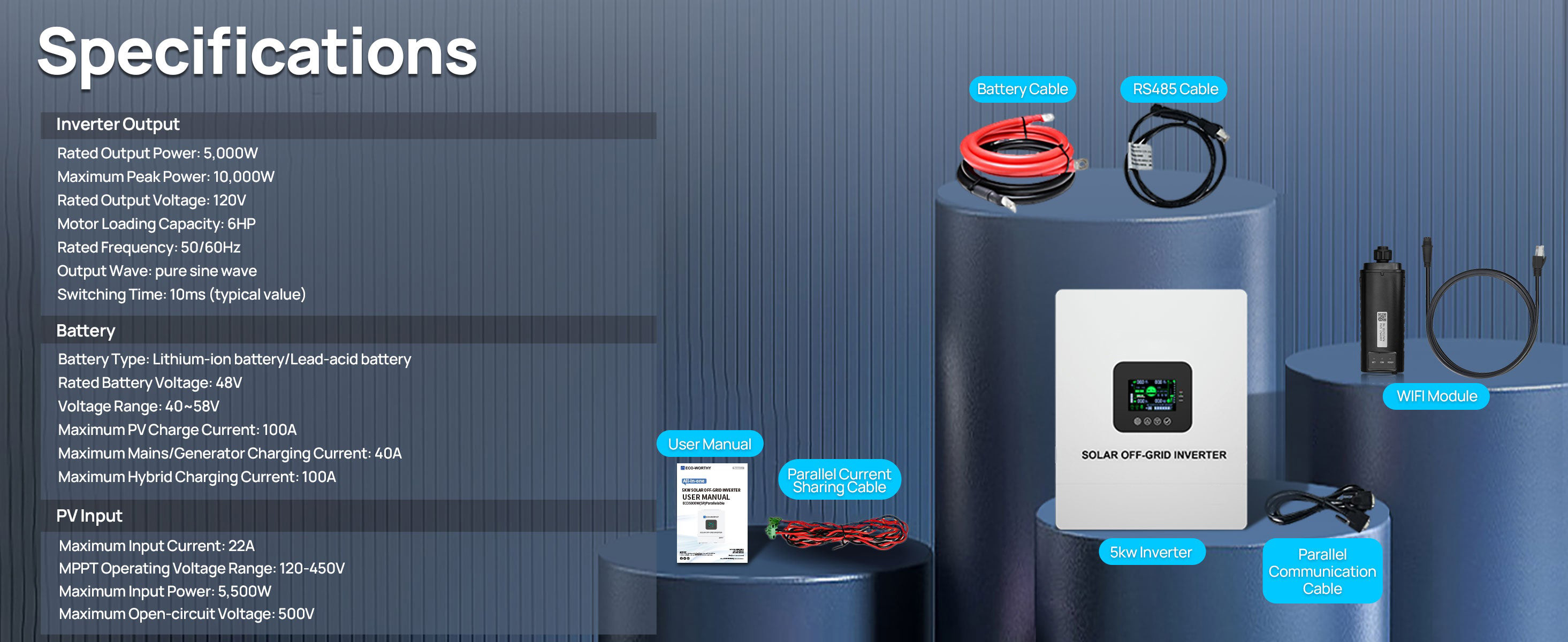

Specifications

Output Voltage Waveform	Pure Sine Wave
Bypass Breaker	63A
Rated Output Power	5000W
Rated Battery Input Voltage	48V(Minimum startingvoltage 44V)
Rated Output Voltage	120VAC
Min Starting Voltage	44V
Peak Power	10000W
Power Saving Mode	Load ≤50W
